DISTANT GALAXIES AND COSMOLOGICAL MODELS
Edward J. Barlow
Member of National Academy of Engineering
Recipient of NASA Public Service Award
Previous member Report Review Committee of the National Research Council
Retired Vice President, Research & Development, Varian Associates
APPENDIX I
NOTE: If you don't have the "Symbol" font, you won't be able to view some of the Greek letters correctly, and with Netscape Browser, the greek letter rho sometimes looks like the letter "r."
If this is the case, email Ed Barlow, and he will fax or mail you a written copy.
When a very distant galaxy or quasar is observed there are several different quantities measured or calculated or previously given. These might include the following quantities (very few of which are usually mentioned in articles).
Measured:
- L_{a} - the apparent luminosity (corrected for redshift as needed)
(The flux received)
- z - the cosmological or relativistic Doppler red shift
- N(z)_{obs} - Observed galaxy count out to redshift z
Given or assumed:
- L_{A} - the absolute luminosity assumed for the object (galaxy or quasar or supernova) (The total power emitted over all angles)
- d - the linear diameter assumed for the galaxy
- R(t) - the scale factor of the universe (depending on the model)
- r_{o} - the present mass density of the universe
- l - the cosmological constant
- G - the gravitational constant
Calculated:
- D_{l}- the luminosity distance of the object (L_{A}/4pL_{a})^{1/2}
- t_{e} - the age of the universe when the light was emitted that we see now
- t_{r} - the age when the light is received (Also t_{0} for the present age)
- D_{e} - the proper distance away the object was at time t_{e}
- D_{r} - the proper distance away the object is at t_{r} or t_{0}
- D_{light} - The proper distance away from us now of a light packet emitted from our galaxy at time t_{e}
- D_{lt} - the light "travel distance", ct_{lb}
- v_{e} - the velocity of recession (rate of change of proper distance) when the light was emitted we see now
- v_{r} - the velocity of recession (rate of change of proper distance) when the light is received (now)
- t_{lb} - the "look back" time, i.e., the time the light has been traveling
- H_{0} - the Hubble "constant" at the present time
- q - the angular diameter of the galaxy (could also be measured)
- r - the mass density of the universe (could also be assumed)
- D_{ph} - the particle horizon
- D_{eh} - the event horizon
- dN/dz - the relative number of galaxies counted in a telescope field of view as a function of distance increment expressed in terms of z.
- n - the number of new galaxies coming into view each year
- W_{m} - the mass density of the universe divided by the
critical mass density (Could be assumed)
- W_{l} - the cosmological constant, l, divided by 3H^{2} (or assumed)
- W_{k} - the space curvature term, k, divided by -H^{2} (or assumed)
APPENDIX II
Einstein deSitter cosmological model equations
NOTE: If you don't have the "Symbol" font, you won't be able to view some of the Greek letters correctly.
If this is the case, email Ed Barlow, and he will fax or mail you a written copy.
For this model the scale factor varies as R(t)~t^{2/3}, the density is critical, space is flat and t_{0}=2/3H_{0}. In a scientific paper, these features are usually described by saying k=0 (space is flat), q_{0}=1/2 (the universe is decelerating), W_{m}=1 (the universe has the critical mass density) and W_{l}=0 (there is no cosmological constant).
(The subscript _{0} denotes values at the present time for the quantities listed.)
Hence:
R(t_{0})/R(t)=(t_{0}/t)^{2/3} =1+z -------------------------(1)
The proper comoving distance of a galaxy from us now is:
D_{r}=3ct_{0}^{2/3}(t_{0}^{1/3}-t_{e}^{1/3}) ----------------------------(2)
(t_{e} is the time when the light was emitted from it that we see now and t_{0} is t_{r}.)
This can be written as:
D_{r}=(2c/H_{0})(1-1/(1+z)^{1/2}) ------------------------(2a)
Suppose we think of the question the other way: how far away from us now is a light packet emitted from our galaxy at time t_{e}? We can see that D_{light}=D_{r} and hence equations (2) and (2a) are correct for D_{light}.
The proper comoving distance away the galaxy was when it emitted the light we see now is:
D_{e}=D_{r}/(1+z)=3ct_{e} ^{2/3}(t_{0}^{1/3}- t_{e}^{1/3}) ----------------(3)
D_{e}=(2c/H_{0})(1-1/(1+z)^{1/2})/(1+z) ------------------(3a)
This is, of course, the proper distance away from us the light packet was when it left the galaxy so we can use this equation to trace the distance away from us a light packet was from very very distant galaxies all the way back to nearly the big bang when t_{e}~0 and
z approaches infinity.
For this model, the particle horizon is at a proper distance of:
D_{ph}=3ct_{0} -------------------------------------------(4)
Note: This is not ct_{0 } as so many books state. (Maybe they use the light travel distance, ct_{lb}?)
There is no event horizon for this model.-------(4a)
There is a distance concept called the luminosity distance, D_{l}.
If the total luminosity of a galaxy is L_{A} over all angles and if the observed luminosity per unit area is L_{a}, then the luminosity distance is defined as:
D_{l} =(L_{A}/4pL_{a})^{1/2} ---------------------------------(5)
and the present proper comoving distance for this galaxy is:
D_{r}=D_{l}/(1+z) ---------------------------------------(5a)
The mass density for this model is the critical density:
r=3H^{2}/8pG ----------------------------------------(6)
As the particle horizon recedes, new galaxies are coming into view each year. The number of such galaxies per year, n, is:
n=N_{0}/t_{0} ---------------------------------------------(7)
If there are 10^{11} galaxies now and t_{0}=15 billion years, then n=7.
The observed angular diameter of a galaxy of linear diameter d is:
q=d/D_{e} =(dH_{0}/2c)(1+z)/(1-(1+z)^{-1/2}) ------------(8)
This can also be expressed in terms of the present distance of the galaxy, D_{r} as:
q=(d/D_{r})/(1-D_{r}/3ct_{0})^{2} -----------------------------(8a)
Interestingly, this angle decreases with increasing distance at first as would be expected, but then reaches a minimum at z=1.25 and D_{r}=ct_{0} and gradually increases for very distant galaxies and large z's.
The look-back time, t_{r}-t_{e} is given by:
t _{lb}=t_{0}(1-1/(1+z) ^{3/2}) -------------------------------(9)
A concept of recession velocity can be introduced as v=dD/dt and so
v_{0}=dD_{r}/dt and v_{e}=dD_{e}/dt. (These velocities will be different in this model because the universe is slowing down).
v_{0}=2c(1-(1+z)^{-1/2}) ---------------------------------(10)
v_{e}=2c((1+z)^{1/2}-1) ----------------------------------(10a)
Note: The recession velocity defined in this way can clearly exceed c which is consistent with some texts, but many texts and articles say that the velocity can never exceed c. For this definition of velocity, velocities greater than c are possible for galaxies we can still see.
The Hubble constant, H_{0}, is defined as v=H_{0}d, but for this Einstein deSitter model, which v is it, v_{e} or v_{0}, and which d is it, D_{e} or D_{r}?
In terms of present velocity, v_{0}, the results are:
D_{e}=(v_{0}/H_{0})(1-v_{0}/2c)^{2} ------------------------------(11)
D_{r}=v_{0}/H_{0} (surprise!)--------------------------------(11a)
For a homogeneous, isotropic universe the galaxy count per increment of z as function of z is:
dN/dz~(1-(1+z)^{-1/2})/(1+z)^{3/2} ----------------------(12)
As a function of D_{r}, however it is dN/dD_{r}~D_{r}^{2} ----------(12a)
Appendix III
Equations for Models II through V
NOTE: If you don't have the "Symbol" font, you won't be able to view some of the Greek letters correctly.
If this is the case, email Ed Barlow, and he will fax or mail you a written copy.
For models II through V of this paper, if the scale factor of the universe, R(t) is known, the value of H(t) can be found as well as the trajectory in the time-distance plane of receding galaxies (neglecting local motions) and of the light packet reaching us now from these galaxies. The behavior of the mass density over time and the impact of the cosmological constant can also be determined. From general relativity an equation called the Friedmann equation has been developed which permits R(t) to be determined. The equation is:
(da/dt)^{2}=H_{0}^{2}(W_{m0}/a+W_{l0}a^{2}+W_{k0})----------------(1)
Where:
a=R(t)/R(t_{0}) (The scale factor normalized to 1 at the present time.)
W_{m0}=present mass density/critical mass density (8pGr_{0}/3H_{0}^{2})
W_{l0}=the cosmological constant term at the present time (l/3H_{0}^{2})
l is the cosmological constant itself
W_{k0}=the space curvature term at the present time (-k/H_{0}^{2})
k is negative for negatively curved space, 0 for flat space and positive for positively curved space
From these definitions it can be seen that W_{m0}+W_{l0}+W_{k0}=1.
Thus a(t) can be found by step-by-step integration of equation (1).
From this, H(t) can be found and the space-time trajectory of the light
package reaching us now can also be found. This is how the curves for
FigureV and VI were generated.
The values of W_{m0}, W_{l}0, and W_{k0} for Models II through V are:
For Model II, 0, 0, 1
For Model III, 1, 0, 0
For Model IV, 0.3, 0, 0.7
For Model V, 0.3, 0.7, 0
W_{m}(a) - the mass density at any time divided by the critical mass density is given by the equation:
W_{m}(a)=(W_{m0}/a)/(W_{m0}/a+W_{l}0a^{2}+W_{k0})---(2)
When this is evaluated for a given value of a, it can be determined as a function of time since a(t) is known.
References:
- J. V. Narlikar Introduction to Cosmology (Cambridge University Press Cambridge, UK 1993)
- Jeffrey Weeks The Shape of Space (Marcel Dekker, 1985)
- Jean-Pierre Luminet et al. "Is Space Finite?". Sci. Am. April 1999. 90-97
- P. J. E. Peebles. Principles of Physical Cosmology (Princeton University Press, Princeton, NJ 1993) pp. 93-100 and other parts
- Arjun Dey et al. "A Galaxy at z=5.34". Astr. Phys. J. 498. L93-L97 (1998 May 10)
- A. G. Reiss et al. "Observational Evidence from Supernovae for an Accelerating Universe and a Cosmological Constant". Astr. J. 116. 1009-1038
- A.V. Filippenko and A. G. Reiss. "Results from the High-z Supernova Search Team". Phy. Rpts. 307. 31-44
- Virginia Trimble. "Closing in on Cosmology". Sky and Telescope. 97 no 2. 38 (1999)
- Joshua Roth. "The Race to Map the Microwave Background"
Sky and Telescope 98 no. 3 Sept. 1999 44
- Craig J. Hogan et al. "Surveying Space-Time with Supernovae". Sci. Am. Jan 1999. 46-51
- Lawrence M. Krauss. "Cosmological Antigravity". Sci. Am. Jan 1999. 53-59
- Martin A Bucher et al. "Inflation in a Low-Density Universe". Sci. Am. Jan 1999. 62-69
- J. D. Cohn. "Living with Lambda". Astro. Phy. & Space Sci. 259 213-234
- Corey S. Powell "The Race to Discover how the Universe Will End" Discover
Vol 23 No 9 September 2002 49-55
- Ron Cowen "Dark Doings" Science News Vol.165 No. 21 May 22, 2004.
Appendix IV -- THE TWIN PARADOX
Graphs
Fig I Model I Paths (moving through space) and redshifts
Fig II Model II Paths (steadily expanding space) and redshifts
Fig III Model III Einstein deSitter standard model, t_{0}=15
Fig IIIA Model III Einstein deSitter standard model, t_{0}=10
Fig IV Model III Distance types and look-back times
Fig V Model IV Current mass density 0.3 critical
Fig VI Model V The accelerating universe

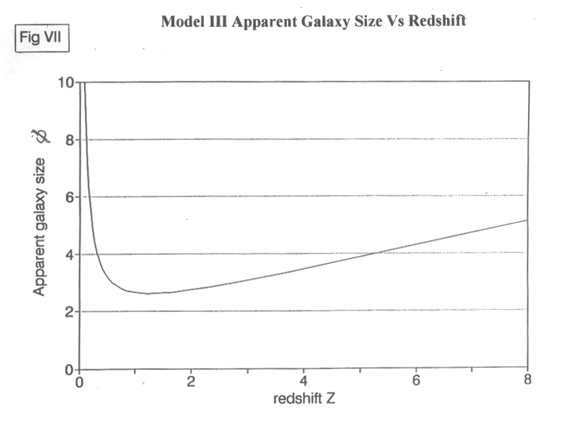

Fig VII Model III Apparent galaxy size as a function of redshift

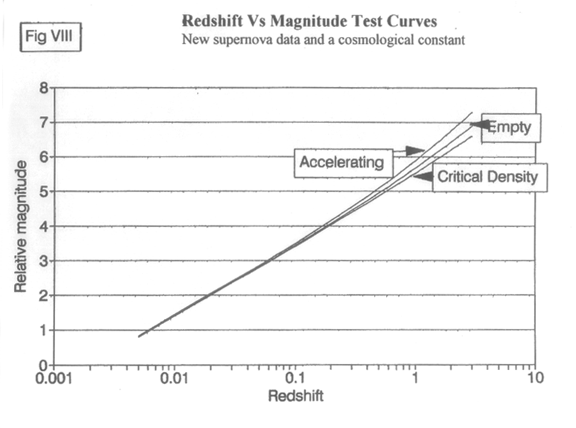

Fig VIII Redshift vs magnitude test curves for new supernova data

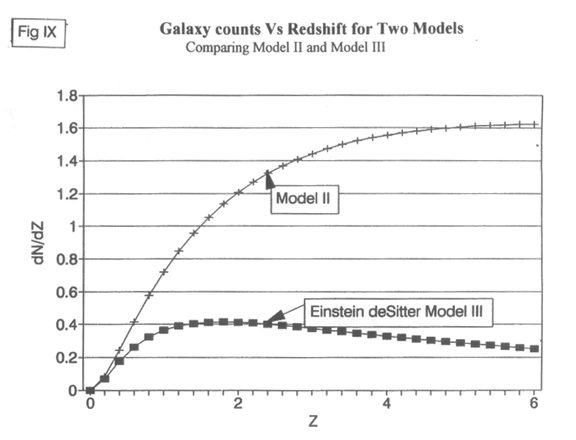

Fig IX Galaxy count as a function of redshift for two models

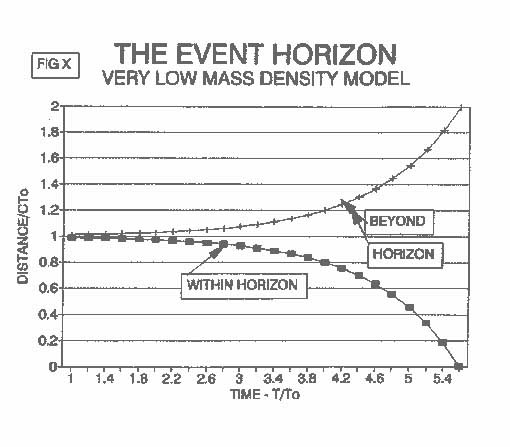

Fig X The event horizon — very low mass density model
©
